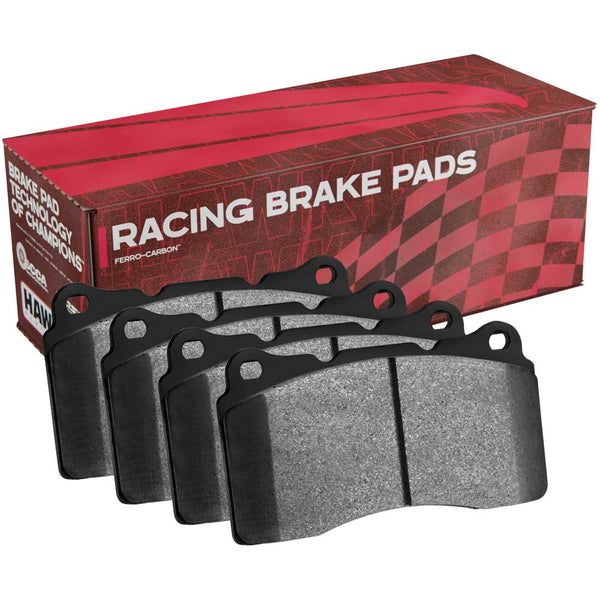

Hawk Performance ER-1 Endurance Racing Compound

ER-1 has been developed by Hawk Performance for the endurance racing market with a simple goal; offer a higher coefficient of friction than competing endurance pads while maintaining matched or improved lifespan. Years of testing across America’s most prestigious races has resulted in a well-rounded compound that offers ideal modulation and pedal communication, with ground breaking friction stability across a thermal range as high as 1,600°F. This consistency of performance, hour after hour, makes it ideal for not only endurance racing, but HPDE, track days, time trials and even sprint racing.

Hawk Performance ER-1 Race Compound Characteristics:

Superior Rotor and Pad Wear.
Consistent Medium to High Friction.
Ideal for light-to-medium weight vehicles in HPDE, Track Day events, Time Trials, or Endurance Racing.
Higher coefficient of friction than competing endurance pads, with matched or improved lifespan.
Medium to High Torque
400-1600 Deg F Operating Temperature Range
700-1100 Deg F Optimal Temperature Range

Hawk Race Compound Chart

Hawk Performance ER-1 Endurance Race Compound

WARNING

This product can expose you to Silica, crystalline (airborne particles of respirable size), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

[instruction]

Hawk Brake Pad Installation Procedure

Install Brake pads properly. Be sure pads are securely positioned in the caliper.
Flush system with fresh brake fluid.
Check all hydraulic parts for excess wear and tear.
Check disc for proper thickness, parallelism, and lateral run-out.
Check disc for scoring or grooves over .012" depth. If either applies, resurfacing or replacement is required.
If disc does not need resurfacing then contamination from the previous brake pads must be removed. Sand discs with Garnet sandpaper using moderate pressure. Use soap and water to clean off disc surface after sanding and machining. Discs should be free and clear of oil, grease, and brake fluid
Inspect calipers for freedom of movement. Lubricate where necessary

<

After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.

Important Reminders when Burnishing or Bedding Brake Pads

Do not attempt to use badly worn or damaged rotors with new brake pads.
Do not drag brakes while car is moving during break-in procedure.
Do not engage pedal while car is stopped at any time following the break-in procedure.
Upon completing the procedure, allow the brake system to completely cool before racing.
Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads.
Some forms of racing don’t allow time for the proper break-in procedure to be performed. However, it is still very important to attempt to perform at least the core of the procedure: Build up heat slowly and allow the system to completely cool down before racing if possible.

[/instruction][warranty]

Limited Lifetime Warranty

Carlisle Brake & Friction (CBF) warrants Hawk Performance branded products to be free of defects from workmanship and materials. This warranty does not apply to normal wear or damage caused by negligence, lack of maintenance, accident, abnormal operations, or improper installation or service. CBF does not make any other warranty claims, either expressed or implied, including the implied warranties of merchantability or fitness for a particular purpose. In no event will CBF/Hawk Performance be liable for incidental or consequential damages of any kind, whether such damages are claimed on account of breach of warranty, breach of contract, negligence, or strict product liability. This includes without limitation, damage to property, or other economic losses that may be incurred. Any, and all, warranty claims must be processed through CBF. All valid warranty claims will be replaced and/or reimbursed with Hawk Performance branded products of equal or greater value.

* Disclaimer to Limited Life-Time Warranty: Motorsports brake pads and rotors are developed for high performance events. Racing is a dangerous sport. Hawk Performance racing brake pads and rotors are sold without warranty expressed or implied. No warranty or representation is made as to this product’s ability to protect the user from injury or death. The user assumes that risk.

Download Warranty Claim Form

[/warranty]

Hawk HB107D.620 Brake Pads
